● Hinge Swings: 180 Degrees Full Rotation Including 90 Degrees Inward and Outward
● Self-Closing within 25 Degrees of Closing Position
● For 5/16" - 3/8" (8 to 10 mm) Tempered Glass
● Bearing Capacity: 40 Kg / 2 Hinges
● Door Wide Application: 31-1/2″ to 39-3/8″ (800-1000mm)
● Passes 50,000 Opening & Closing Fatigue Tests
● Passes 48-Hour Salt Spray Test
→ SVA-321C 90°Glass To Wall Offset Back Plate
→ SVA-322C 90°Glass To Wall Full Back Plate
→ SVA-322CH 90° Glass To Wall H Plate
→ SVA-322CS 90° Glass To Wall Small Plate
→ SVA-323C 180° Glass To Glass
More information:

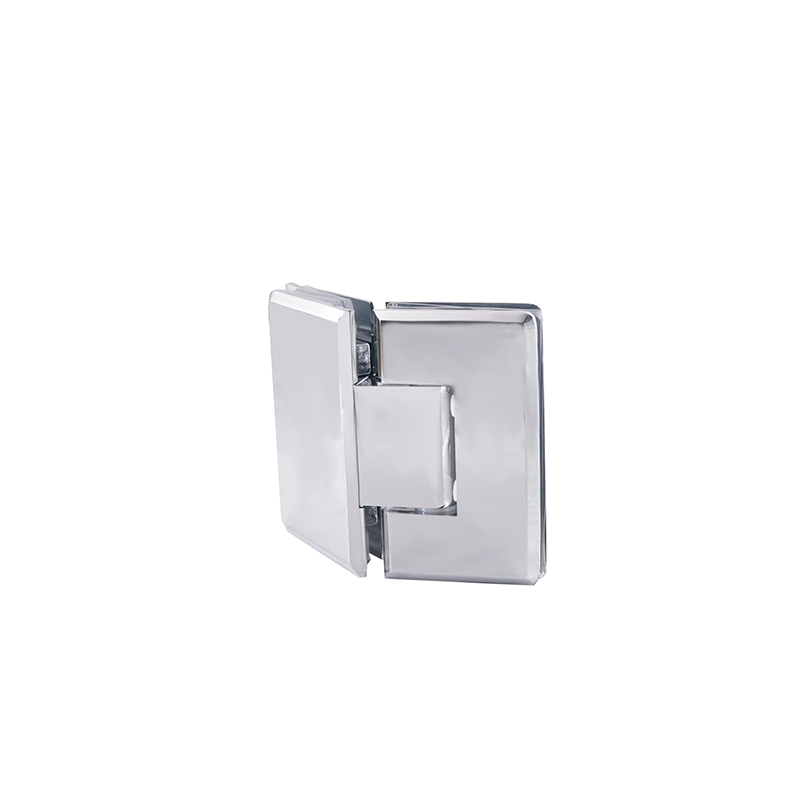

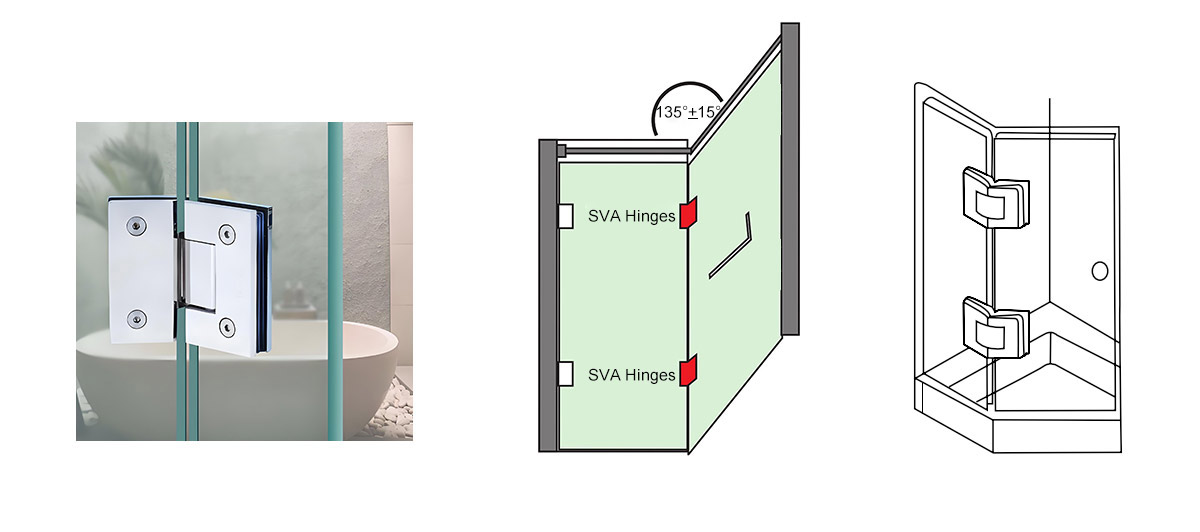

● Hinge Swings: 135 Degrees Open with 90 Degrees Inward and Outward Rotation
● Self-Closing within 25 Degrees of Closing Position
● For 5/16" - 3/8" (8 to 10 mm) Tempered Glass
● Bearing Capacity: 40 Kg / 2 Hinges
● Door Wide Application: 31-1/2″ to 39-3/8″ (800-1000mm)
● Passes 50,000 Opening & Closing Fatigue Tests
● Passes 48-Hour Salt Spray Test
SVA Adjustable Series:
The shower hinges features a ±15 degrees adjustable function, allowing for precise alignment during installation. To use this function, simply loosen the adjustment screw, position the glass at the desired angle, and then securely tighten the screw to lock the hinges in place.
Self-Centering When Within 15 Degrees of Closed Position.
