• Hinge Swings: 90 Degrees Inward and 90 Degrees Outward

• Self-Closing within 25 Degrees of Closing Position

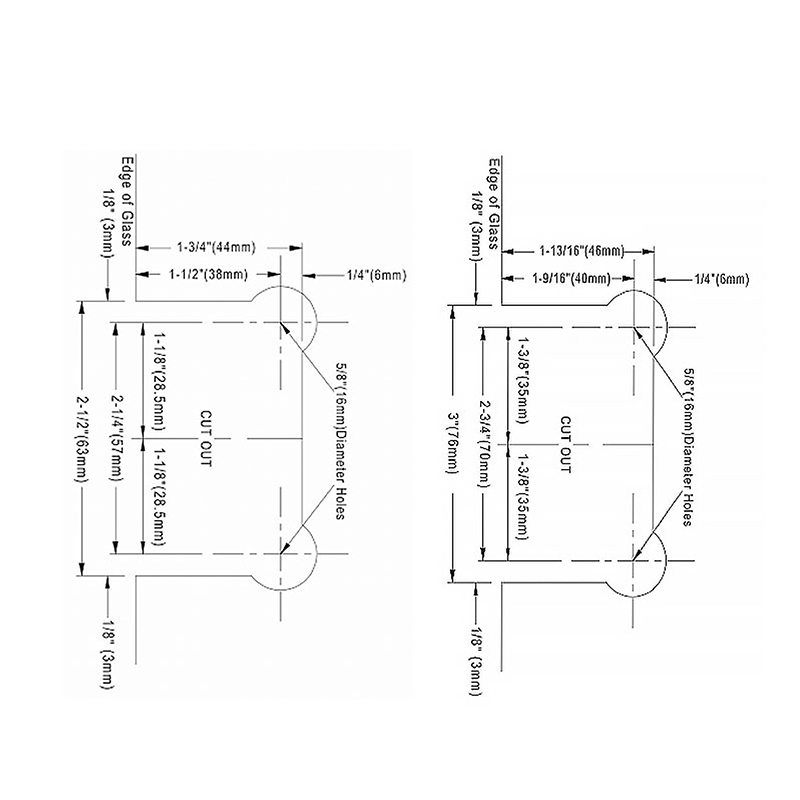

• For 5/16" - 3/8" (8 to 10 mm) Tempered Glass

• Bearing Capacity: 40 Kg / 2 Hinges

• Door Wide Application: 31-1/2″ to 39-3/8″ (800-1000mm)

• Two sizes : 3-35/64″*2-11/64″ and 3-15/16″*2-9/32″  (90*55mm and 100*58mm)

• Adjustable glass door angle after installation

• Passes 50,000 Opening & Closing Fatigue Tests

• Passes 48-Hour Salt Spray Test

SVA Adjustable Series:

The shower hinges features a ±15 degrees adjustable function, allowing for precise alignment during installation. To use this function, simply loosen the adjustment screw, position the glass at the desired angle, and then securely tighten the screw to lock the hinges in place.

How to install the 90 degree Wall To Glass shower hinges?

• Mark the Position: Mark the location on the wall and glass where the hinges will be installed. Ensure proper alignment.

• Drill Holes: Drill holes in the wall at the marked positions using appropriate drill bits for tile or concrete.

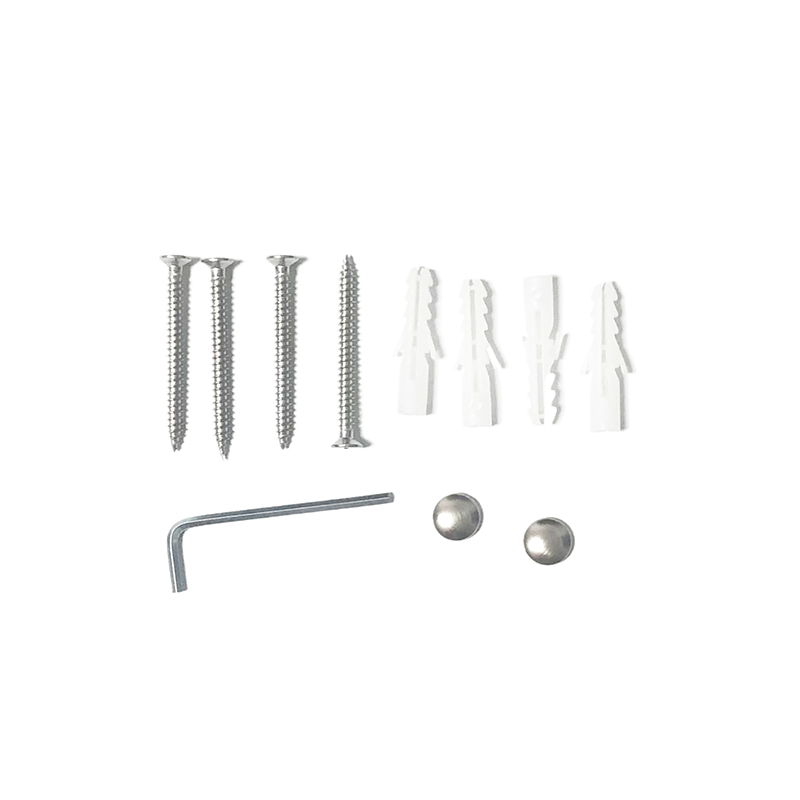

• Install Anchors: Insert wall anchors into the drilled holes to secure the screws.

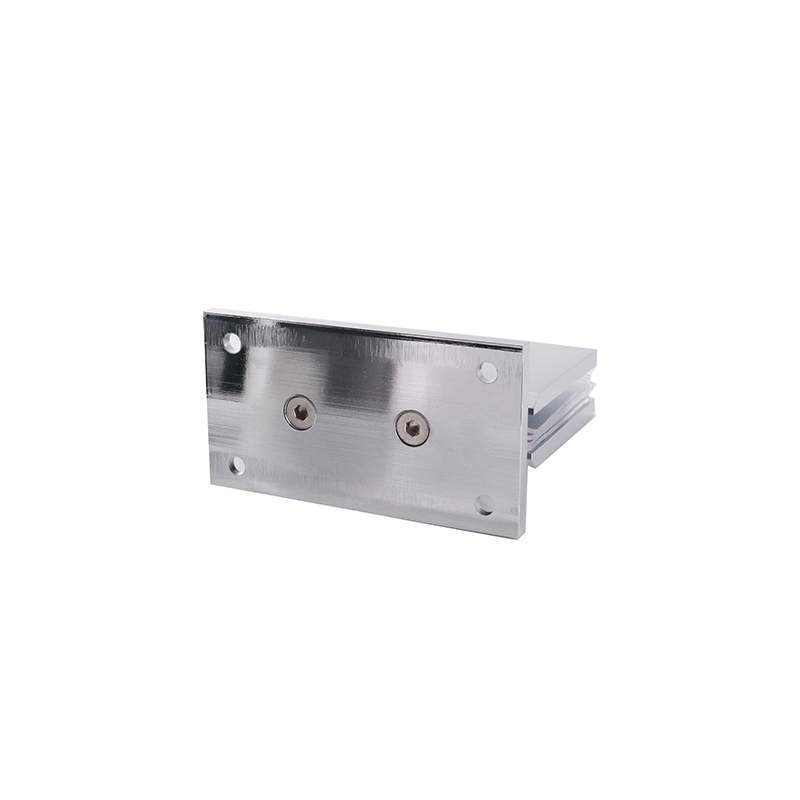

• Attach Hinges to the Wall: Secure the hinge plates to the wall using screws.

• Mount the Glass: Attach the glass panel to the hinge, ensuring it's level.

• Tighten Screws: Tighten all screws securely. Test door movement.

Self-Centering When Within 15 Degrees of Closed Position.
