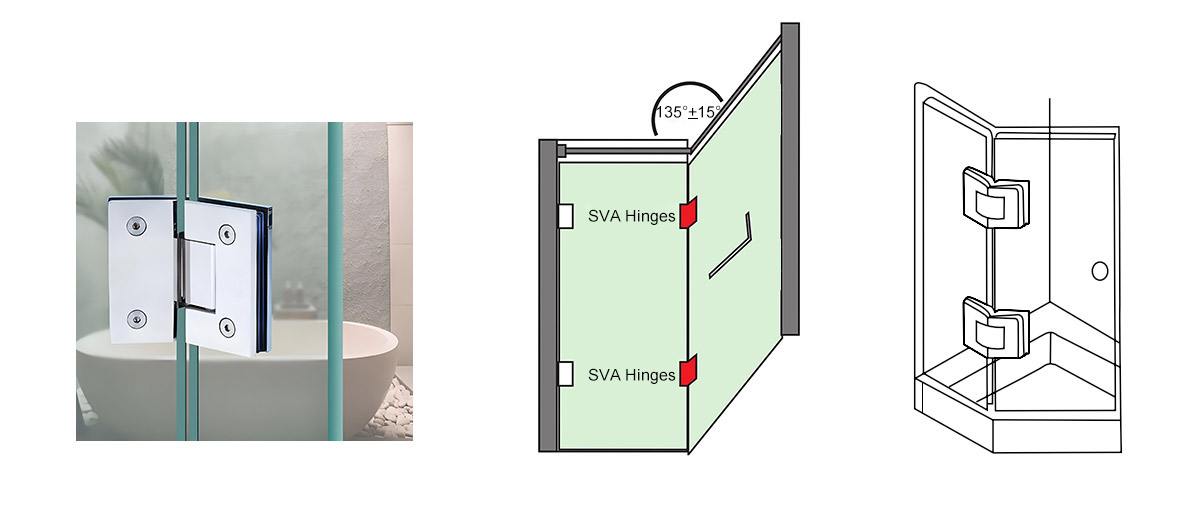

●  Hinge Swings：135 Degrees Open with 90 Degrees Inward and Outward Rotation

   ●  Self-Closing within 25 Degrees of Closing Position

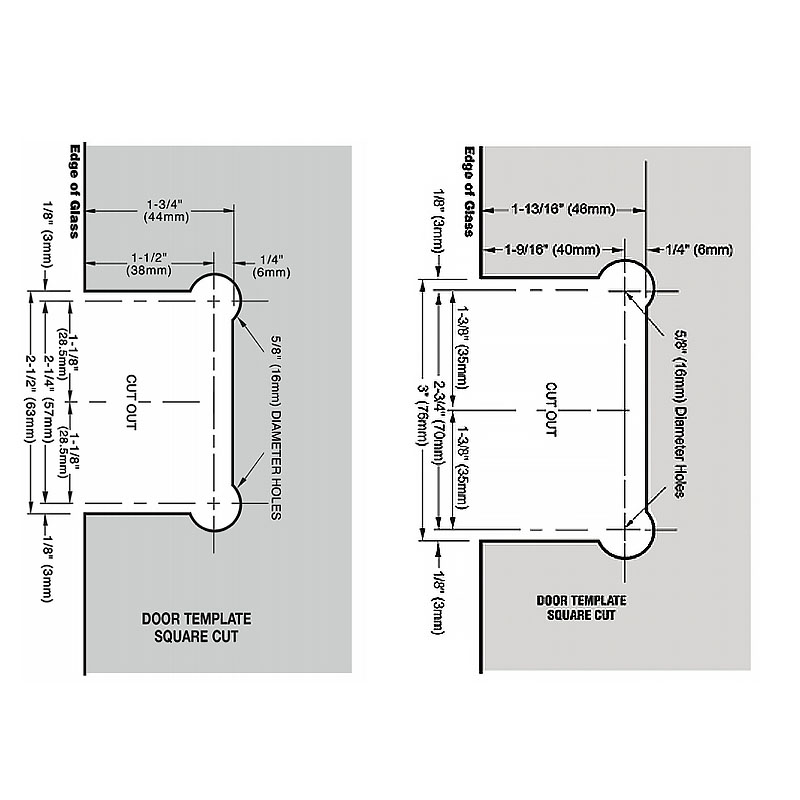

   ●  For 5/16" - 3/8" (8 to 10 mm) Tempered Glass

   ●  Bearing Capacity: 40 Kg / 2 Hinges

   ●  Door Wide Application: 31-1/2″ to 39-3/8″ (800-1000mm)

   ●  Two sizes : 3-35/64″*2-11/64″ and 3-15/16″*2-9/32″ (90*55mm and 100*58mm)

   ●  Adjustable glass door angle after installation

   ●  Passes 50,000 Opening & Closing Fatigue Tests

   ●  Passes 48-Hour Salt Spray Test

SVA Adjustable Series:

The shower hinges features a ±15 degrees adjustable function, allowing for precise alignment during installation. To use this function, simply loosen the adjustment screw, position the glass at the desired angle, and then securely tighten the screw to lock the hinges in place.

Self-Centering When Within 15 Degrees of Closed Position.
