●  Hinge Swings: 90 Degrees Inward and 90 Degrees Outward

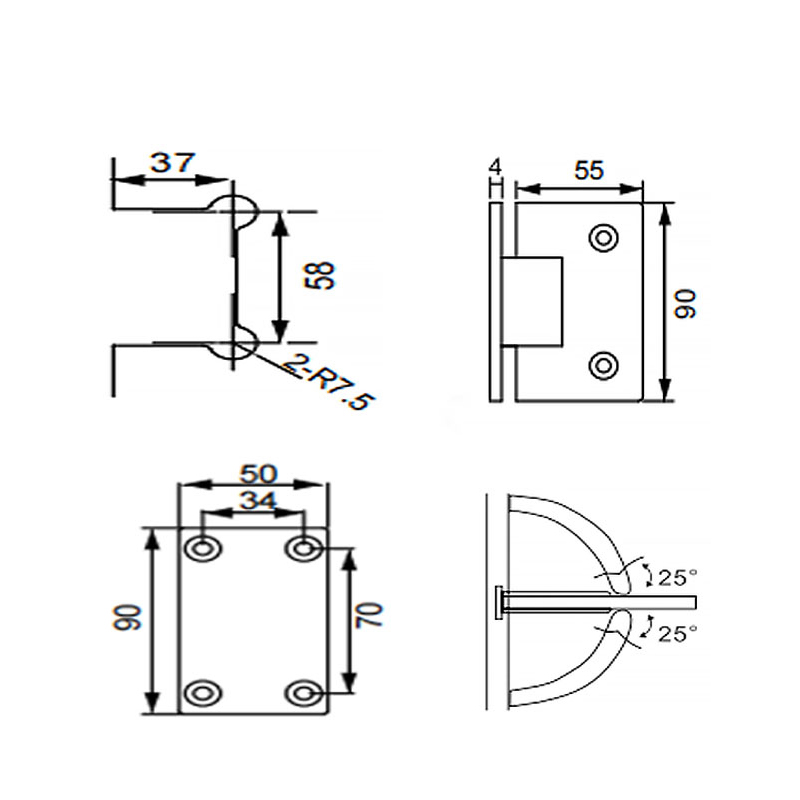

   ●  Self-Closing within 25 Degrees of Closing Position

   ●  For 5/16" - 1/2" (8 to 12 mm) Tempered Glass

   ●  Bearing Capacity: 40 Kg / 2 Hinges

   ●  Door Wide Application: 800-1000mm

   ●  Passes 50,000 Opening & Closing Fatigue Tests

   ●  Passes 48-Hour Salt Spray Test

How to install the 90 degree Wall To Glass shower hinges?

• Mark the Position: Mark the location on the wall and glass where the hinges will be installed. Ensure proper alignment.

• Drill Holes: Drill holes in the wall at the marked positions using appropriate drill bits for tile or concrete.

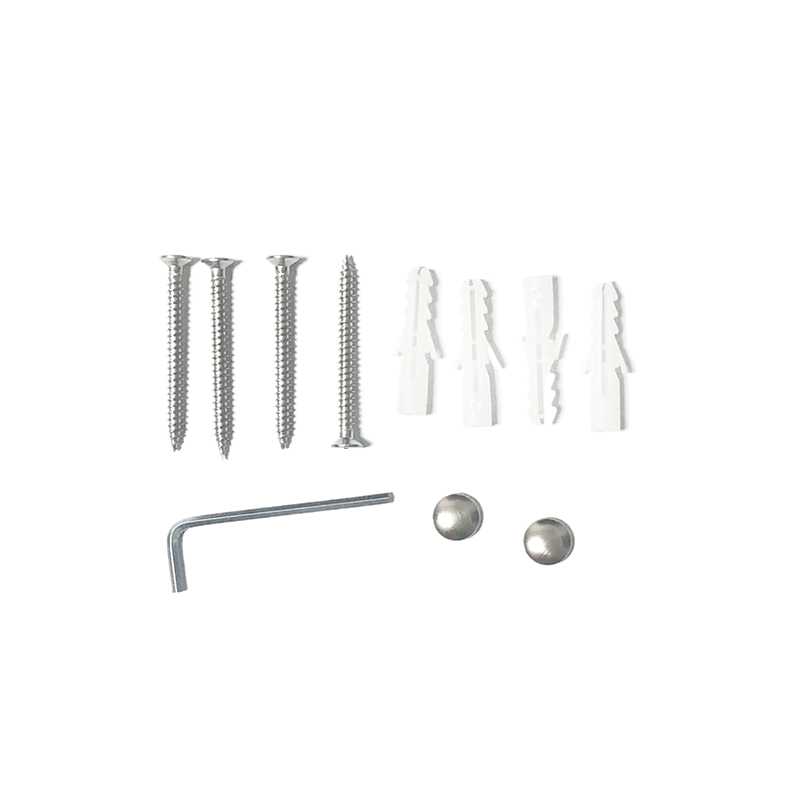

• Install Anchors: Insert wall anchors into the drilled holes to secure the screws.

• Attach Hinges to the Wall: Secure the hinge plates to the wall using screws.

• Mount the Glass: Attach the glass panel to the hinge, ensuring it's level.

• Tighten Screws: Tighten all screws securely. Test door movement.
