When evaluating shower door hingeoptions for glass door installations, B2B buyers typically come across three main functional types: adjustable hinges, non-adjustable hinges, and those equipped with a reversible 5-degree pivot pin, often referred to in the industry as a 5-degree positive hinge. While the first two categories are widely understood, the 5-degree feature is sometimes overlooked, yet it can be a game-changer for certain applications.

 [View Shower Hinge]      [View Pivot Hinge]        [Contact SVA]

What Exactly Is a Reversible 5-Degree Pivot Pin?

At its core, the reversible 5-degree pivot pin is a dual-position design built into the hinge's pivot mechanism. The hinge leaves the factory set at a standard 90-degree angle, which works perfectly for most standard door installations where the door closes flush with the fixed panel or wall.

However, the pivot pin includes an alternate setting that can be adjusted on-site. By switching to this secondary position, the hinge allows the door to close an additional 5 degrees beyond the standard 90-degree stop. This means the door presses more firmly against the jamb, frame, or sealing strip, providing a tighter and more secure closure.

When Does a 5-Degree Positive Hinge Become the Right Choice?

The 5-degree positive hinge is not a replacement for adjustable hinges, it serves a distinct and specific purpose. The need for this feature arises primarily when the installation requires the door to make consistent contact with a seal or gasket to prevent water from escaping the shower area.

In many frameless shower enclosures, standard 90-degree closure may leave a slight gap between the door edge and the fixed panel or wall, especially if the seal is thick or the wall is not perfectly straight. The additional 5-degree angle ensures the door compresses the seal evenly along its entire height, achieving a watertight fit.

Another practical scenario is when the door has a natural tendency to drift open due to hinge wear, slight floor slope, or the weight distribution of the glass. The 5-degree positive setting provides a gentle bias that helps keep the door in a closed position, enhancing both functionality and user convenience.

Why B2B Buyers Should Pay Attention to This Feature？

For distributors, contractors, and wholesalers, offering hinges with a reversible 5-degree pivot pin adds a layer of versatility to your product portfolio. It demonstrates that you understand the real-world challenges of shower glass installation and are prepared to provide solutions that address them.

The field adjustment is quick and tool-free, making it easy for installers to adapt to site conditions without requiring additional parts or specialized training. This reduces the likelihood of callbacks and increases overall customer satisfaction. It is important to note that this feature is complementary to other hinge functions, it is not about correcting major angle deviations, but rather about refining the door's closing behavior for improved sealing and stability.

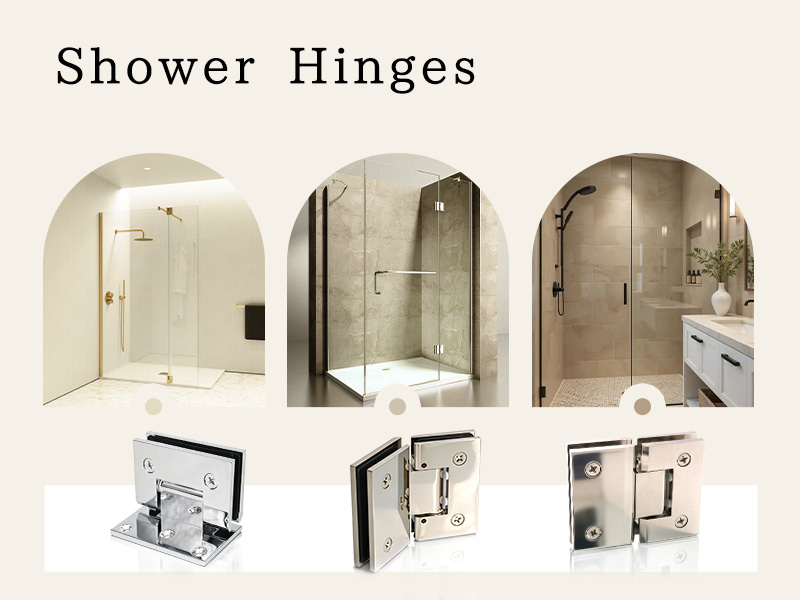

SVA offers shower hinges featuring the reversible 5-degree pivot pin, combining a factory-set 90-degree angle with a secondary on-site adjustable 5-degree positive setting. These hinges are manufactured from high-grade solid brass with durable electroplated finishes, and they are compatible with tempered glass thicknesses ranging from 8mm to 12mm.

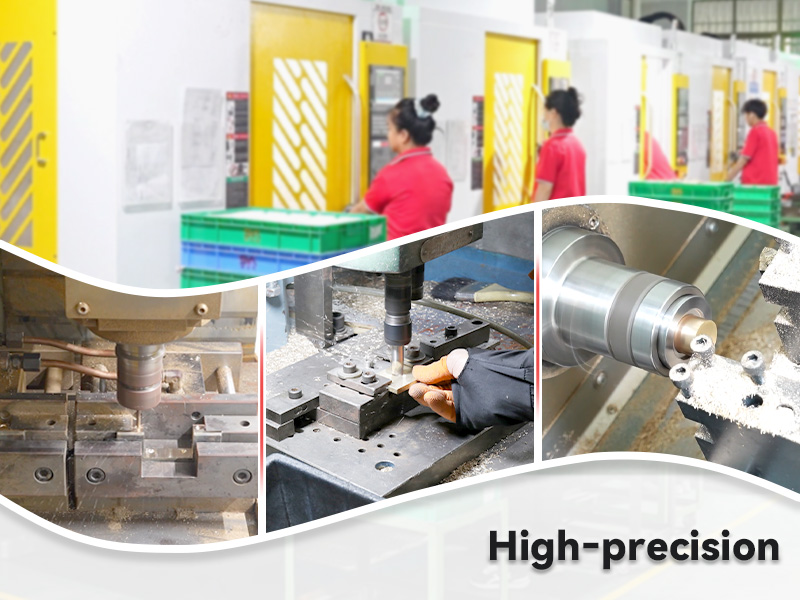

As a factory-direct manufacturer with over 23 years of industry expertise, SVA provides reliable, precision-engineered hardware suitable for bulk orders and large-scale projects. Our sales team is ready to assist with product selection, sample requests, and customized solutions tailored to your market needs. Welcome to contact SVA.
